Description

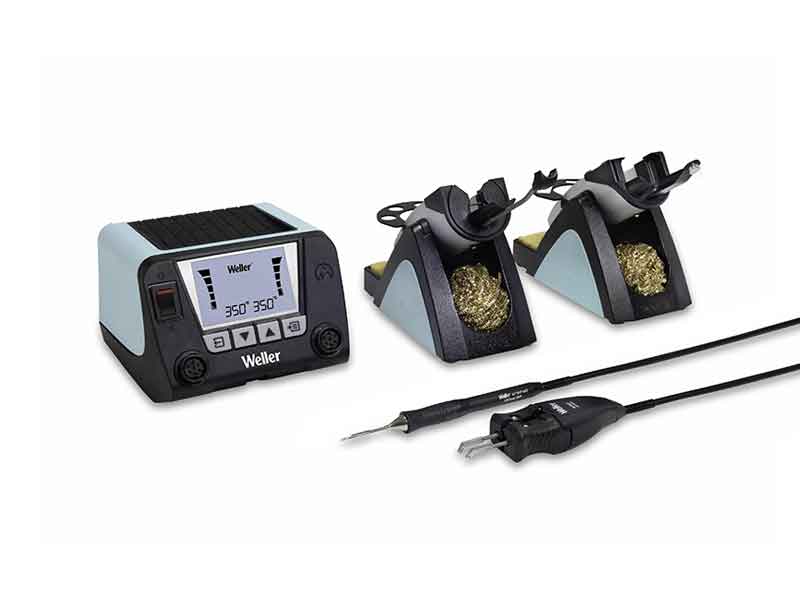

Weller WT2023M multifunction station

WT2M unit 150W with tweezers 80W and soldering iron 40(55)W

WT 2023M – Weller digital rework station, 2 channels, 150 W 230 Vac.
Equipped with Micro tools sets for Micro & Standard soldering and desoldering applications.
Thanks to intelligent power sharing, the WT 2M control unit allows 2 users to work simultaneously. The system features automatic tool recognition. If a connected tool has an integrated motion sensor, system allows automatic stand-by.
A clear menu structure allows for Intuitive use.
Weller product no.: T0053462699.

Scope of supply:

WT 2M (T0053443399) – Power unit with 2 channels, 150 W.

WTMT SET (T0051321499) – Kit includes:

• WTMT (T0051321199) – Tweezers 80 W, 12 V (tool without tips) for desoldering and soldering applications. Temperature range: 100-450 °C. Heating time: 5 sec. Tip family: RTWMS (Micro), RTWPS (Pico)
• RTWMS 030 K (T0050116099) – Pair of tips for WTMT tweezers, 80 W (2 x 40 W), 12 V. Suitable for use with Micro & Standard components, from 0504 up to 1608 (M to L)

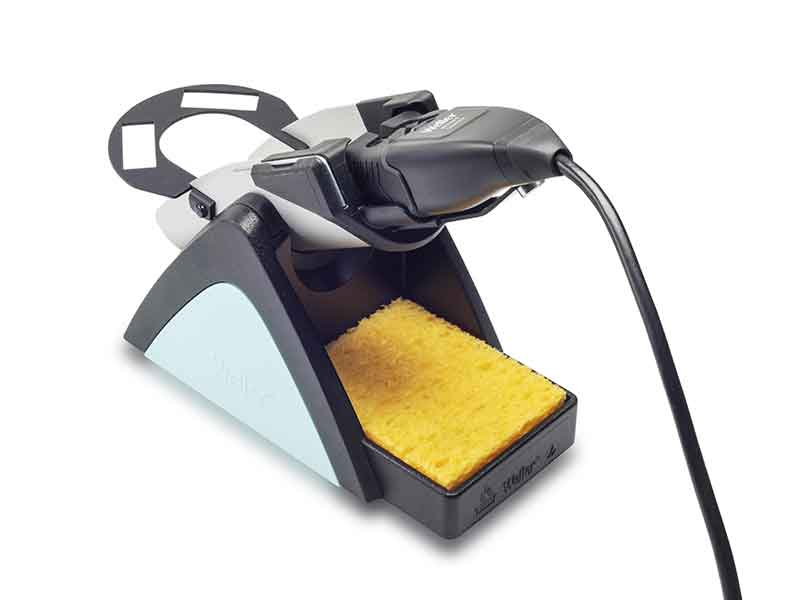

• WSR 211 (T0051518599) – Safety rest for WTMT desoldering tweezers, Stop-and-Go function, 2-in-1 cleaning system.

WTMP MS SET (T0052924199) – Kit includes:

• WTMP MS (T0052923999) – Micro soldering iron 40 W (55 W) 12 Vac (tool without tip). Temperature range: 100-450 °C. Heating time (50–350 °C): approx. 5 sec. Stand-by function. Tip family: RTM MS (military standard)
• RTM 013 S MS (T0054461699N) – RT Micro soldering tip, chisel (Ø 1.3 x 0.4 mm). MIL-SPEC compliant, high-performance active tip for Micro & Standard components
• WSR 205 (T0052924199) – Safety rest with double cleaning options.

Specifications

• Channels: 2
• Max. power of the control unit: 150 W
• Voltage. 230 / 50 Hz
• Temperature range (depends on tool): 100 – 450/550 °C
• Temperature stability: ± 2 °C

• Temperature accuracy: ± 9 °C
• Fuse: T 0,8
• ESD safe: Yes
• Stackable: Yes – Housing cover useable as storage
• Dimensions (WxDxH): 150 x 130 x 101 mm
• Weight: 1.9 kg
• UPC: 4003019449361.
