Description

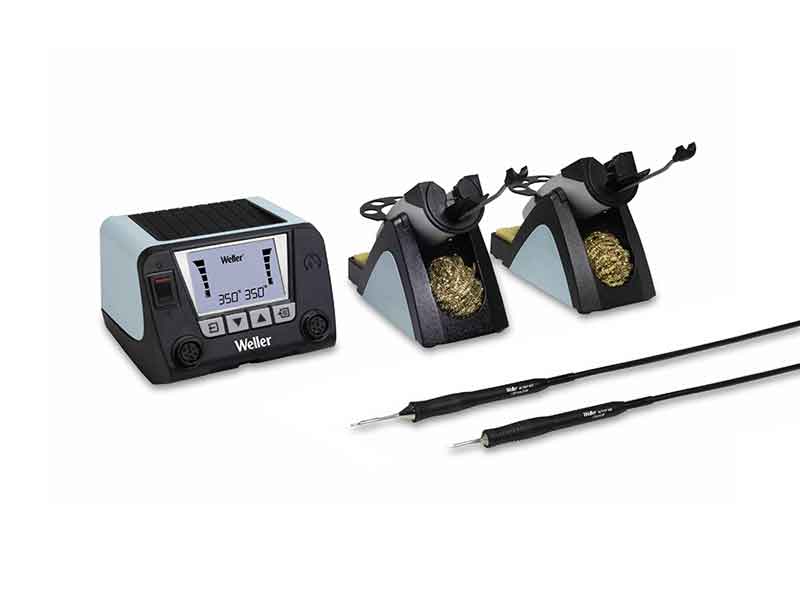

Weller WT 2022M micro-soldering kit

WT 2M power unit 150W with 2 soldering irons 45 (55) W

WT 2022M – Weller digital soldering station, 2 channels, 150 W 230 Vac.
Equipped with Pico and Micro tool sets for Nano, Pico, Micro and Standard applications.
Thanks to intelligent power sharing, the WT 2M control unit supplied allows 2 users to work simultaneously.
The system features automatic tool recognition. If a connected tool has an integrated motion sensor, system allows automatic stand-by.
A clear menu structure allows for Intuitive use.
Weller product no.: T0053461699.

Scope of supply:

WT 2M (T0053443399) – Digital power unit with 2 channels, 150 W.

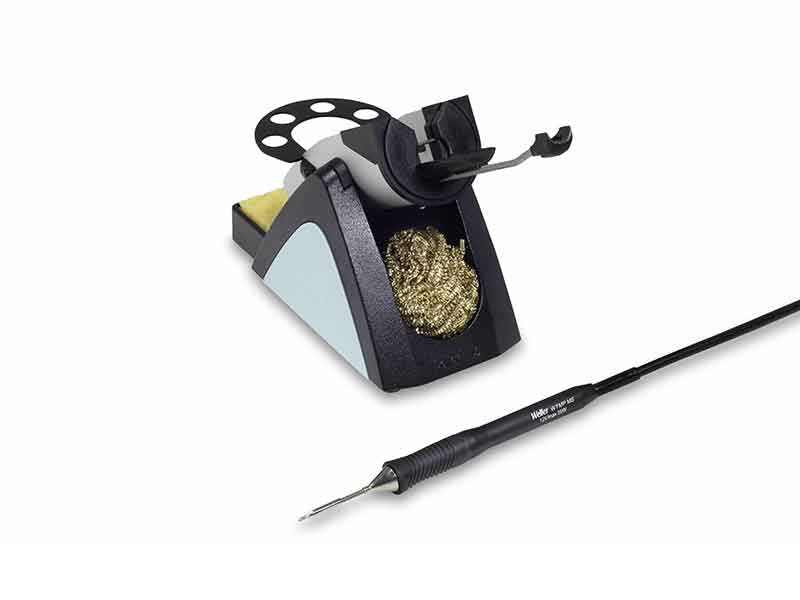

WTMP MS SET (T0052924199) – Kit includes:

• WTMP MS (T0052923999) – Micro soldering iron 40 W (55 W) 12 Vac (tool without tip). Temperature range: 100-450 °C. Heating time (50–350 °C): approx. 5 sec. Stand-by function. Tip family: RTM MS (military standard)
• RTM 013 S MS (T0054461699N) – RT Micro soldering tip, chisel (Ø 1.3 x 0.4 mm). MIL-SPEC compliant, high-performance active tip for Micro & Standard components
• WSR 205 (T0052924199) – Safety rest with double cleaning options.

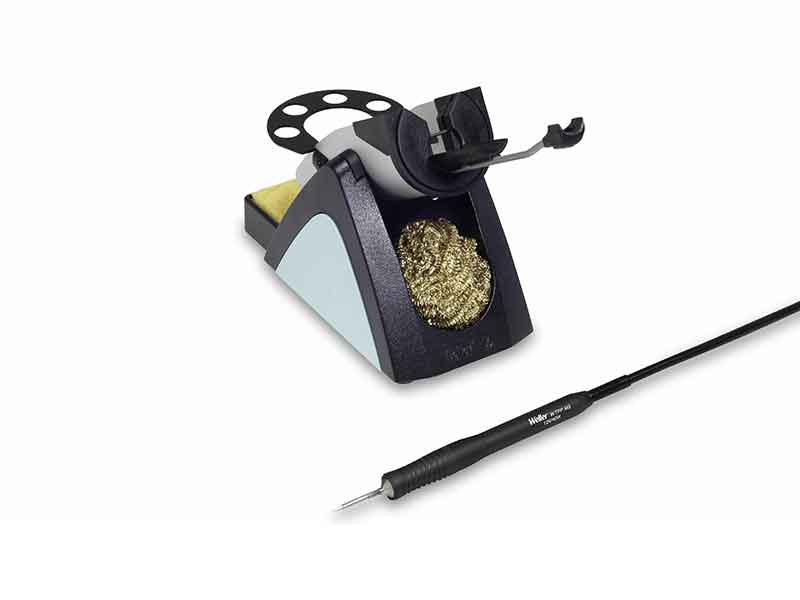

WTPP MS SET (T0052924299) – Kit includes:

• WTPP MS (T0052924099) – Nano/Pico soldering iron 40 W (55 W) 12 Vac (tool without tip). Temperature range: 100-450 °C. Heating time (50–350 °C): approx. 3 sec. Stand-by function. Tip family: RTP MS (military standard)
• RTP 004 S MS (T0050102399) – RT Pico soldering tip, chisel (Ø 0.4 x 0.2 mm). MIL-SPEC compliant, high-performance active tip for the smallest SMD components: from 0402 up to 01005
• WSR 205 (T0052924199) – Safety rest with double cleaning options.

Specifications:

• Channels: 2
• Max. power of the control unit: 150 W
• Voltage. 230 Vac / 50 Hz
• Temperature range (depends on tool): 100 – 450/550 °C
• Temperature stability: ± 2 °C

• Temperature accuracy: ± 9 °C
• Overcurrent release: T40/B
• Fuse: T 0,8A
• ESD safe: Yes
• MIL specifications: Yes
• Stackable: Yes – Housing cover useable as storage
• Dimensions (WxDxH): 150 x 130 x 101 mm
• Weight: 1.9 kg
• UPC: 4003019449354.
