Description
Weller WHP 3000 1200W, 190x245mm

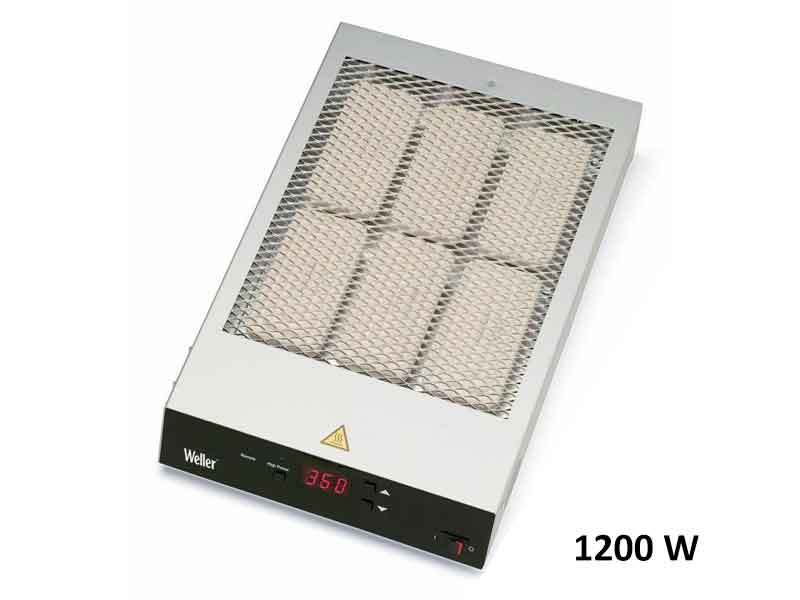

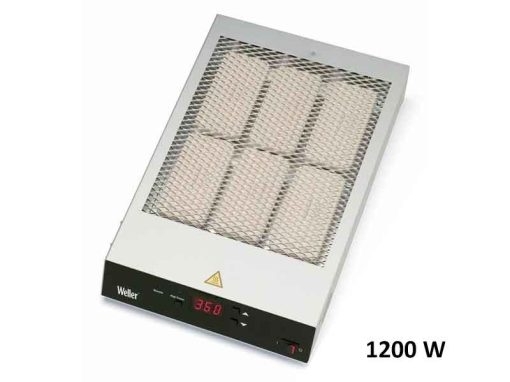

WHP 3000 – Weller infrared preheating plate with digital temperature control, 1200 W, 230 Vac.
Equipped with 6 ceramics elements for a quick and effective heating at high-temperatures.
Up to 2 heating areas can be selected. The digital display allows to set and read temperature values, showing set and actual temperature.
A WHA 3000 air station can be connected via RS-232 interface.
An external sensor can be connected.
Weller product no.: T0053364699N.
Included accessories: 2 x Easy Fix board holder.
Specifications
- Power: 1200 W
- Supply voltage: 230 V, 50/60 Hz
- Temperature range: from 50 to 400 °C
- Preheating area: up to 190 x 245 mm
- Overall dimensions (WxDxH): 254 x 395 x 70 mm
- ESD safe: Yes
- Connections: 1 x RS-232, 1 x Thermocouple type K (NOT included)
- UPC code: 037103305459.
