Description

Weller WT 2020M multifunction station

WT2M unit 150W with tweezers 80W and soldering iron 40W

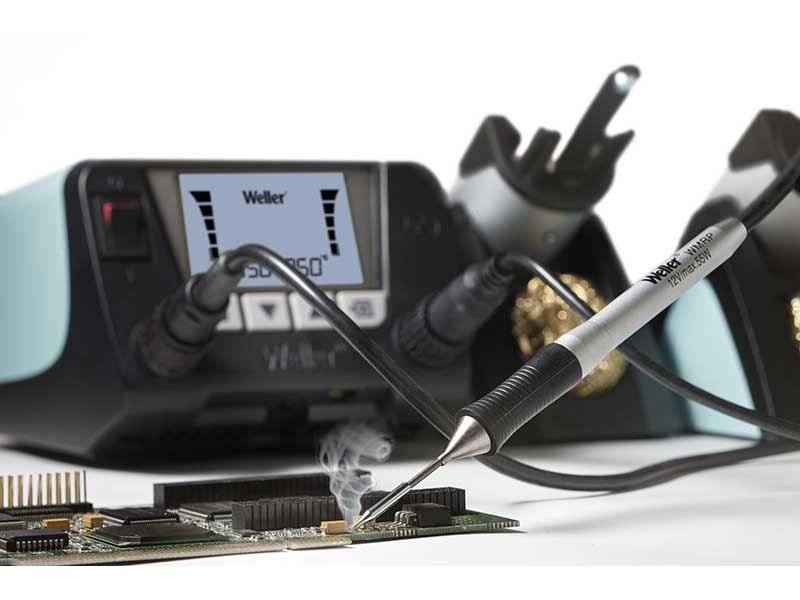

WT 2020M – Weller digital rework station, 2 channels, 150 W 230 Vac.
Equipped with Micro tools sets for Micro & Standard soldering and desoldering applications.
Thanks to intelligent power sharing, the WT 2M control unit allows 2 users to work simultaneously. The system features automatic tool recognition. If a connected tool has an integrated motion sensor, system allows automatic stand-by.
A clear menu structure allows for Intuitive use.
Weller product no.: T0053445399.

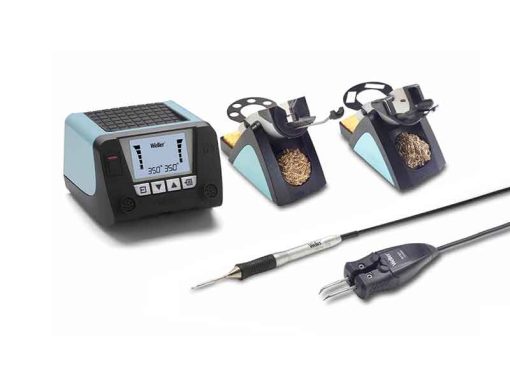

Scope of supply:

WT 2M (T0053443399) – Digital power unit with 2 channels, 150 W.

WTMT SET (T0051321499) – Kit includes:

• WTMT (T0051321199) – Tweezers 80 W, 12 V (tool without tips) for desoldering and soldering applications. Temperature range: 100-450 °C. Heating time: 5 sec. Tip family: RTWMS (Micro), RTWPS (Pico)
• RTWMS 030 K (T0050116099) – Pair of tips for WTMT tweezers, 80 W (2 x 40 W), 12 V. Suitable for use with Micro and Standard components, from 0504 up to 1608 (M to L)
• WSR 211 (T0051518599) – Safety rest for WTMT desoldering tweezers, Stop-and-Go function, 2-in-1 cleaning system.

WMRP SET – Kit includes:

• WMRP (T0052917199N) – Micro-soldering iron 40 W, 12 V (tool without tip) with Active-Tip technology and stand-by function. Ideal for very small components with high energy demand. Temperature range: 100-450 °C. Heating time: 3 sec. Tip family: RT
• RTM 013 S (T0054460399N) – RT Micro soldering tip, chisel (Ø 1.3 x 0.4 mm). High-performance active tip for Micro & Standard components

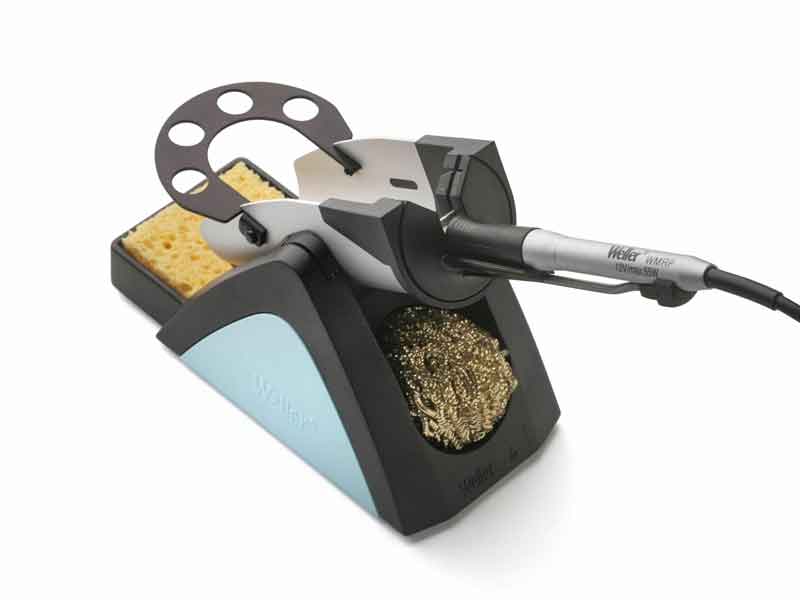

• WSR 205 (T0051517999) – Safety rest for WMRP and WMRP MS soldering irons, 2-in-1 cleaning system.

Specifications

• Channels: 2
• Power: 150 W
• Voltage. 230 / 23 V
• Temperature stability: ± 2 °C

• Temperature accuracy: ± 9 °C
• Overcurrent release: T40/B
• Fuse: T 0,8A
• ESD safe: Yes
• Stackable – Housing cover useable as storage
• Dimensions (WxDxH): 149 x 138 x 101 mm
• Weight: 3.10 kg
• UPC: 4003019441365.
