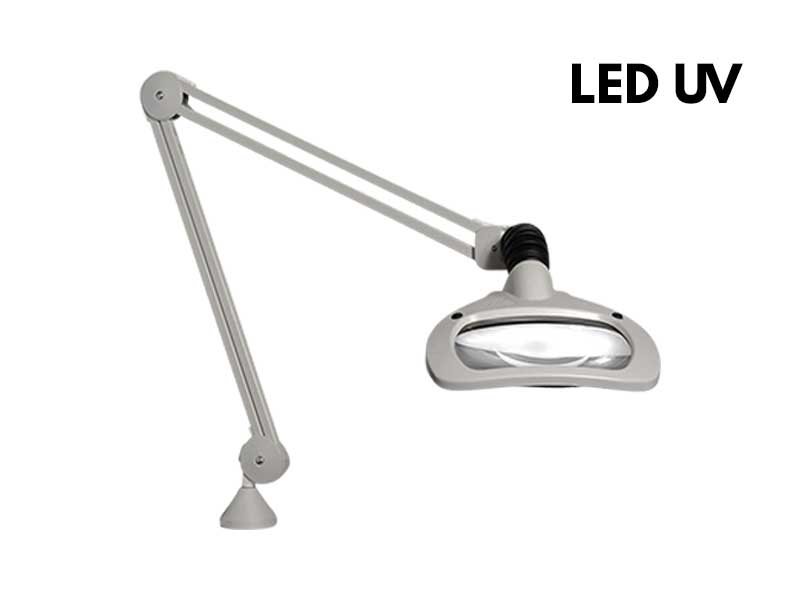

Luxo WAVE LED – UV version
WAVE LED UV – Luxo series bench magnifier with Wood’s lamp by Vision Engineering.
This model offers shadow-free magnification and 3D viewing with an independently controlled left and right illumination. The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.
Luxo series magnifiers incorporate the same design excellence adopted throughout Vision’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.
Available sizes (Dioptres): 3.5 (El.Mi code 151513C), 5.0 (El.Mi code 151513D).
Variations: LED lighting, ESD safe version (with LED or UV lighting)
Accessories (NOT included): STAYS additional lenses – Benchkam camera for image capturing and sharing.
Specifications
- ILLUMINATION:
Wood’s lamp with 2 LED modules (365 nm UV-A), partialisable (right/left)
3-step adjustment: 0 – 50 – 100 %
Auto-off function. - OPTICS:
Rectangular crown glass lens: 3.5 di (1.88 x), 5 di (2.25 x)
Dimensions: 171 x 114 mm (6.7 x 4.4”). - STRUCTURE
Fully-enclosed neck
“Hands free” design: no knobs to tighten, nothing to adjust
A flexible and self-balancing arm with friction-free connection to the head ensures easy and exact positioning
Material: Steel stand with aluminium head – Colour: Light grey
Stand technology: High-resistance internal parallel spring (1143mm, 45”), Three-section articulated K arm
Table mounting: Fixing clamp (other possibilities are available on request).
Magnification range with additional lenses:
For a larger magnification range you can add STAYS lenses (NOT included) to the main one, obtaining a maximum magnification of 4.75 x, as described in the table below.
