Electric depaneling machine SMA-10L

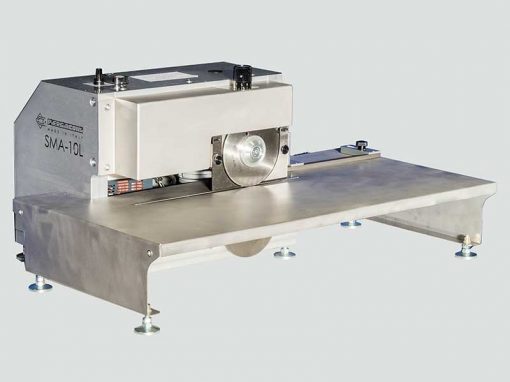

Piergiacomi SMA-10L – PCB Separator for v-scoring boards, equipped with 2 blades.
Expecially designed for long boards (Lighting industry), up to 600mm length.
Thanks to its unique design, SMA-10L can depanel both short and long boards, bare or populated. In this last case the maximum component heigth is 32mm.
The alignment system allows three degrees of regulation. The first regulation is the height of the reference plan in relation to the cutting tool; this is achieved by an apposite knob. Then a guide allows to easily position the scored line aligned with the cutting tool and finally a mechanical reference assures the correct positioning of the panel.
The guide can be easily adjusted to compensate different scoring depth.
Specifications
- Power: < 100W – Voltage: 230V
- Works on CEM and FR4 PCBs
- With 2 blades, 125mm diameter
- PCB thickness (bare): from 0.8 to 1.6 mm
- Max. PCB dimensions: 220×230 mm
- Max. PCB dimensions (with 2 table extensions): 600×230 mm
- Manual Z control (blades adjustment): 10mm
- Manual table’s height adjustment: 10mm
- Working area: 750×1200 mm
- Manufacturer: Piergiacomi – Made in Italy
- CE mark.
