Description

Led magnifier, 5 dioptres, class-A

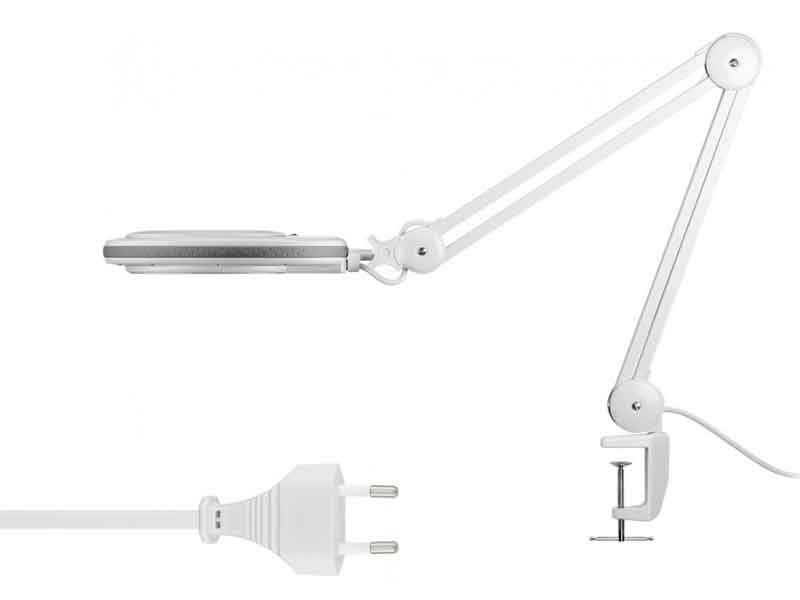

LED illuminated bench magnifier, equipped with a 2-section articulated 800mm arm and a 285° tiltable head.
Perfect for precision applications such as soldering, repairs and assemblies.
Included accessory: lens protective cover.

Specifications

• OPTICAL DATA
  Dioptres: 5 – Magnification: approx. 2.25 x
  Diameter of the round glass lens: Ø 127 mm
• LIGHTING DATA
  Illuminazione: 80 LED – Luminous flux: 966.6 lumen
  Dimming: No (ON/OFF)
  Type of light: White, 6000-6500K°
  Colour rendering indexa: 80 Ra
  Beam angle: 120°
• ELECTRICAL DATA
  Power supply: 220-240 Vac, 50 Hz, 15W
  Electrical power factor: 0.9
  Class A LEDs integrated in the lamp structure are NOT replaceable
  Service life: 20000 hours
  Switching cycles: 10000
  Protection class: IP20
• STRUCTURE
  Colour: White
  Arm length: 815mm (upper 400mm, lower 415mm)
  Robust fixing clamp for tables with thickness up to 65 mm
  Lamp rotation: 285°
  Oval lamp with a diameter of approx. Ø 26 cm.
