Adjustable ESD PCB Rack 80°C (4 Sizes)
PCB Rack 80°C ESD Gear-adjustable (4 Sizes)

Adjustable ESD PCB Rack (80°C, 355x320xH563mm)

Price excluding taxesPrice including taxes
89,00€/Pc 108,58€/Pc

Available in 10/15 days

Product Code: 149377P
Categories: , ,
Tags: ,
Data sheet

Description

Rack for 350x(50-250)mm PCBs

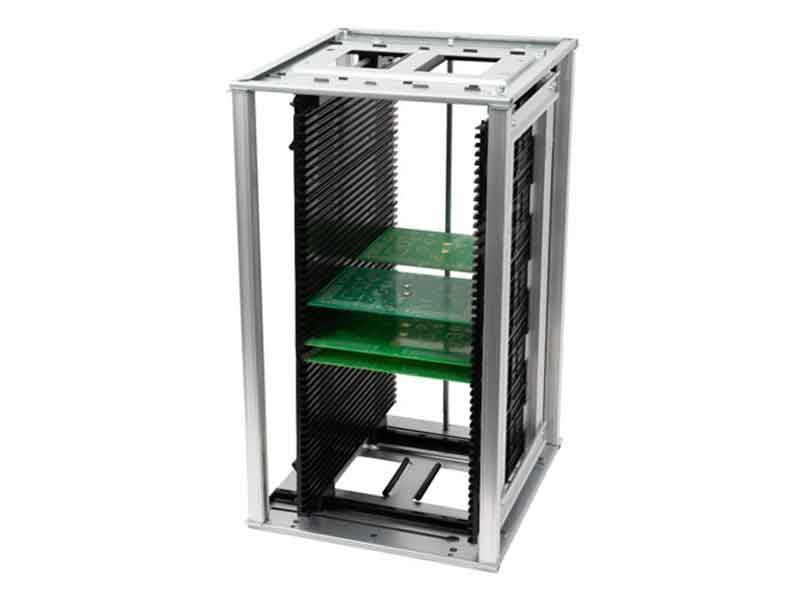

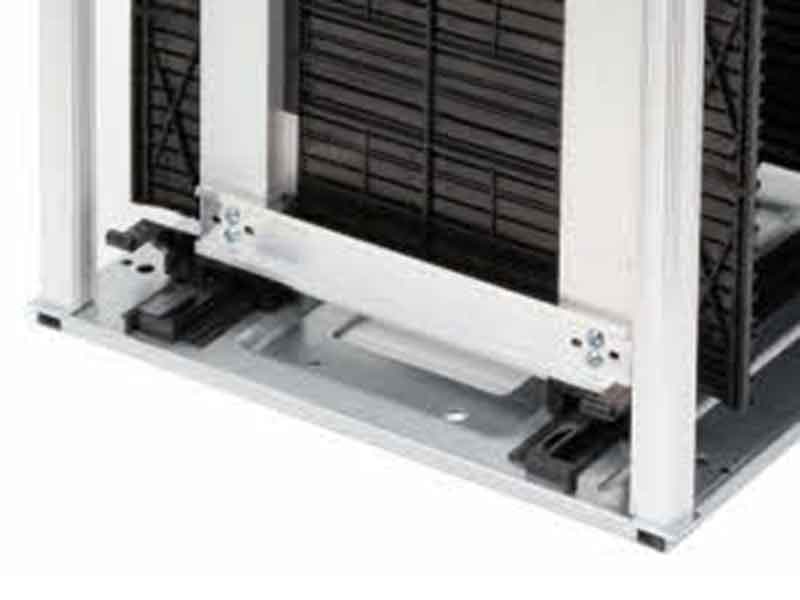

Gear-adjustable PCB magazine, ESD safe, stackable, equipped with stop bar.
Suitable for use in workshops but also in industrial lines equipped with automated PCB loading/unloading.
Simple and quick to use, easy to clean. It can accomodate up to 50 PCBs.

Specifications

  • Heat resistance: up to 80 °C
  • Dimensions: 355 x 320 x 563H mm
  • Max. PCB dimensions: 350 x (50-250) mm
  • Slot dimensions (Widthx Height): 3.5 x 5 mm – Pitch: 10 mm
  • Material: Aluminium, Conductive plastic
  • Surface resistance of plastic parts: 10^4 – 10^6 Ohm
  • Compliant with IPC regulations, IEC 61340-5-1-ESD, ANSI/ESD S541, RoHS 2.0, Directive 2011/65/EU & (EU) 2015/863, REACH.

Additional information

Weight 11,9 kg
ESD

Material

,

Internal dimensions
