Description

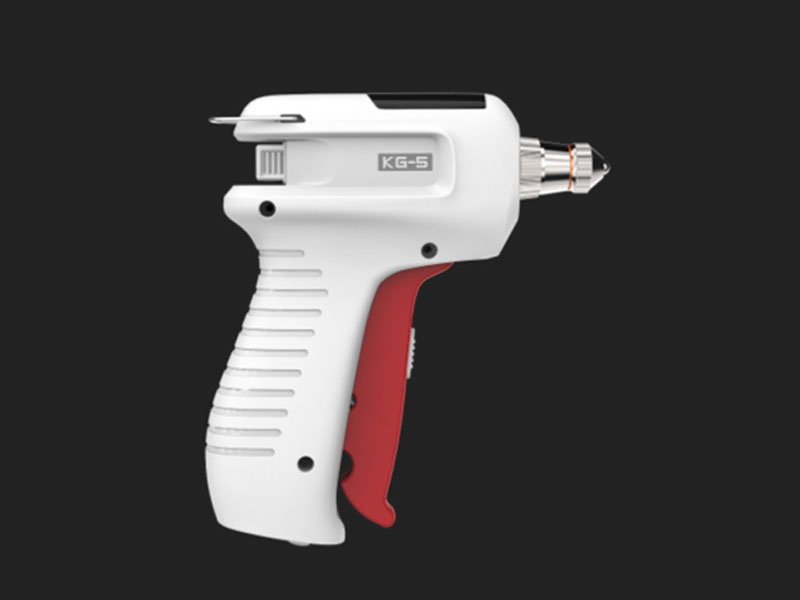

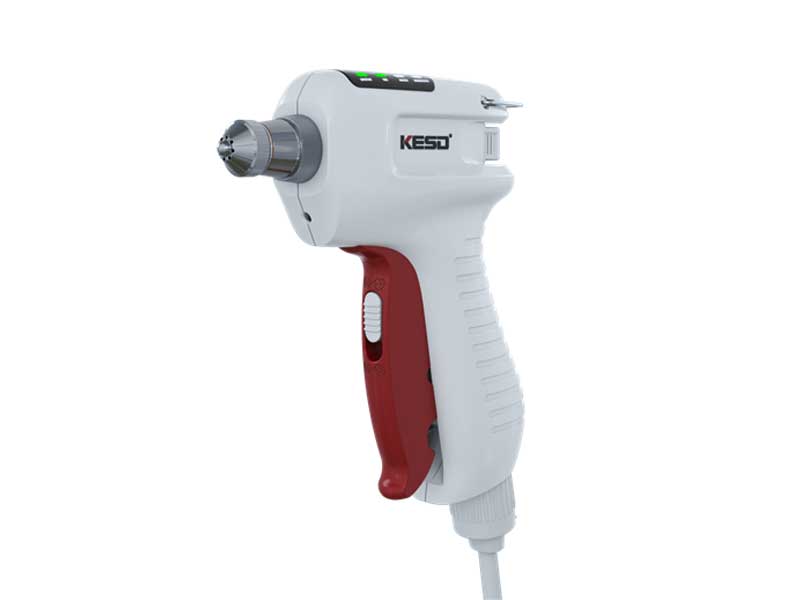

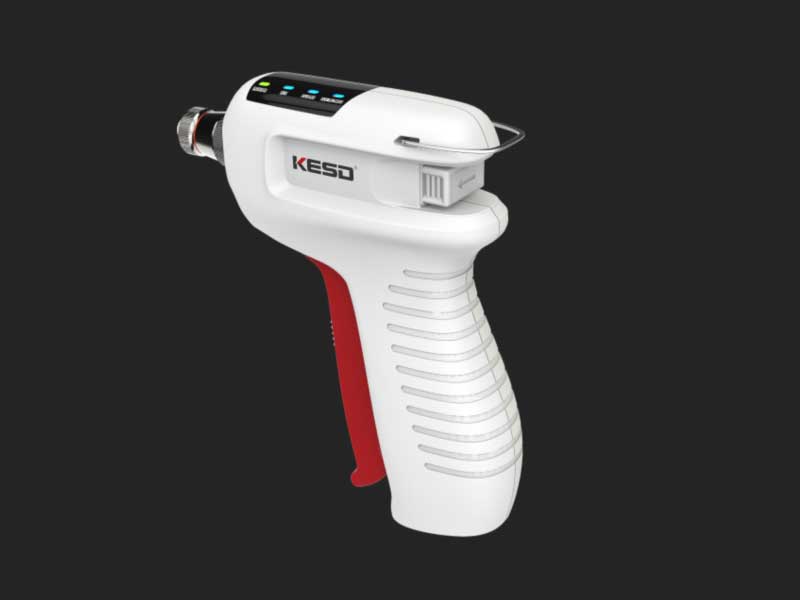

KG-5 compressed air ionizer
KG-5 – Ionizing air gun for the removal of electrostatic charges in EPA areas.
Small, handy and ergonomic, it can remove static electricity from one point to a large area.
A built in high-voltage system automatically adjusts the ion balance.
A special filter improves the cleanliness of compressed air and reduces noise at the same time.
It can work in 2 modes. Pulling the trigger, it is possible to switch between “Gas electric synchronization” [it activates the air first and then the high voltage] and “Gas electric first” [it first activates the air, and then the high-voltage: useful in environments subject to particular fire and anti-explosion regulations] functions.
Specifications
- Input power: 24 Vdc
- Output voltage: 2200 Vac
- Operating temperature: 0÷40 °C
- Ion generation mode: HF AC 2200 Vac
- Ion balance (30 cm distance): <= 0±15 V
- Ozone concentration (200 mm distance): < 0.03 ppm
- Filtration efficienncy: 60% – Accuracy: 40-60 μm
- Dimensions: approx. 147 x 118 x 33 mm.
Test results*
- Distance 150 mm: Static decay time (+/-): 1.3 / 1.4 s – Residual voltage: 0 ± 15 V
- Distance 300 mm: Static decay time (+/-): 1.9 / 2.0 s – Residual voltage: 0 ± 15 V.
* Operating voltage: DC24V – Test voltage: ±1000V -± 100V – Temperature: 0°C ± 40°C.
ATTENTION: KG-5 requires an external compressed air supply (NOT included) to function.
Scope of supply: KG-5 ionizer equipped with Silencer spray head – AC/DC power supply unit – Power cable – Compressed air hose (Ø 6) – 3 x O-Ring.

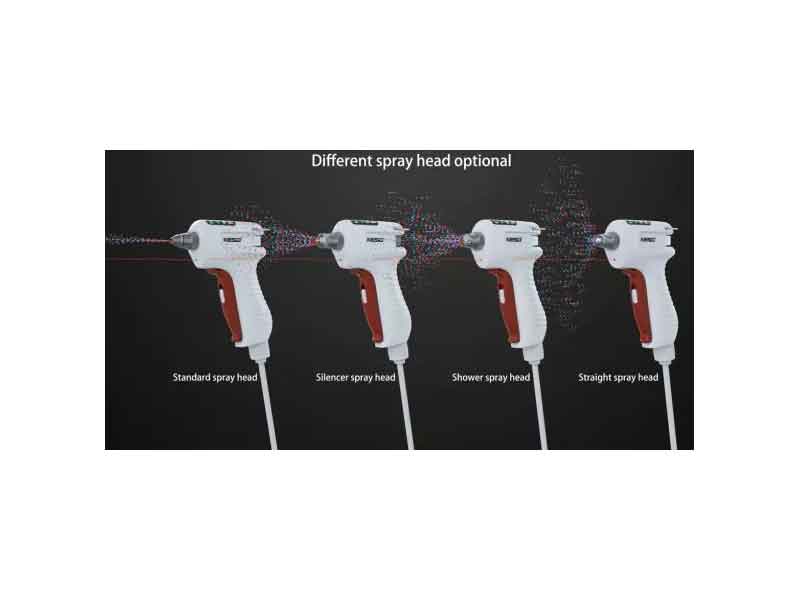

Available accessories (NOT included): Air nozzle for a different air blow.
Further details about the supply:
How to connect the power cable to the supply unit so trhat it can faste well:
