Description

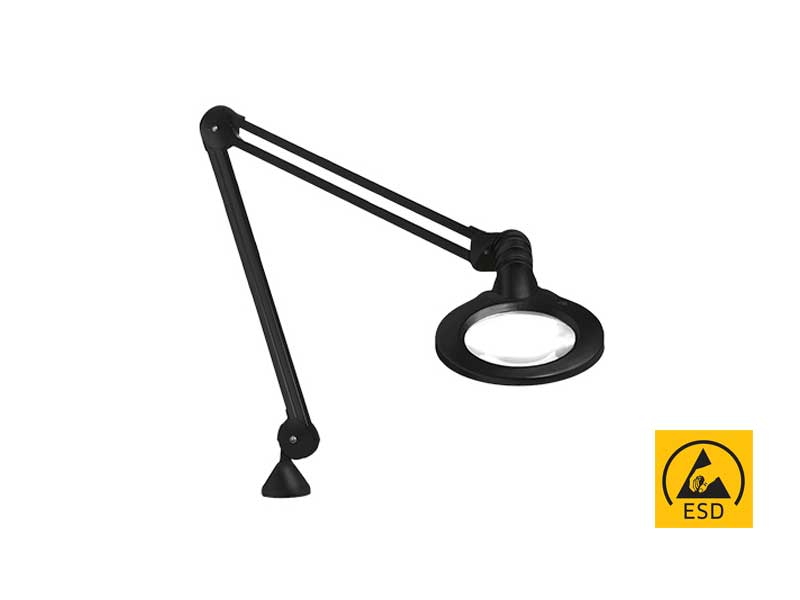

Luxo KFM LED ESD magnifying lamp
KFM LED ESD – Luxo series bench magnifier with light by Vision Engineering.
Anti-static ESD safe version of the standard KFM model, characterized by a sturdy metal structure with flexible stand, easy and precise positioning of the head and great lighting quality.
The quality and positioning of the LEDs across two semi-circular modules allow for virtually shadow-free illumination and excellent colour rendering.

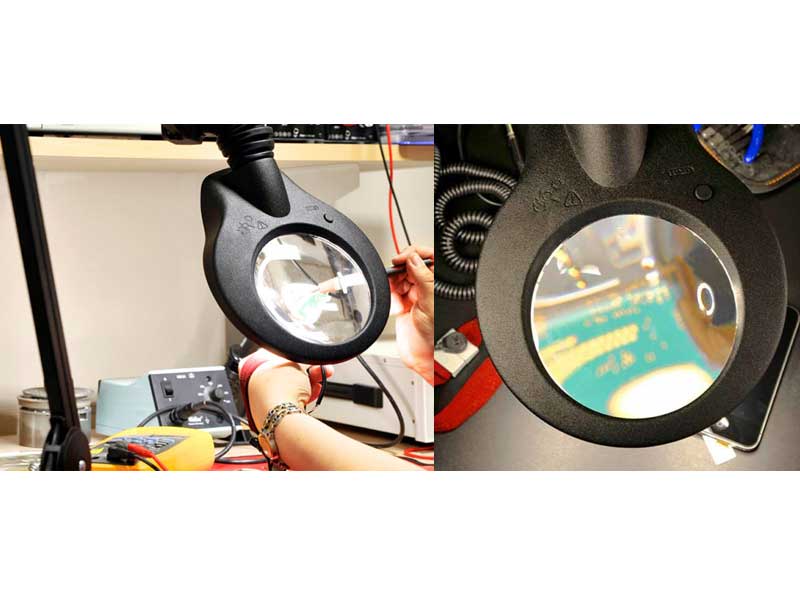

Thanks to its flexible, self-balancing head and a fully-enclosed, hands-free neck design, KFM is ideal for environments where foreign object debris (FOD) is a concern.
Available sizes (Dioptres): 3.0 (El.Mi code 151511E), 5.0 (El.Mi code 151511F).
Accessories (NOT included): STAYS additional lenses – Benchkam camera for image capturing and sharing.
Specifications
- ILLUMINATION:
2 x Semicircular 9W LED module
Lighting (330 mm working distance): 3000 lux
Dimming: 1-100%
Correlated colour temperature (CCT): 4000°K
Colour rendering index (CRI): 80
Auto-off function. - OPTICS:
Circular glass lens: 3.0 D (1.75 x) / 5.0 D (2.25 x)
Diameter: Ø 127 mm (5”). - Material: Steel stand, aluminium head – Colour: Black
- Table mounting: Fixing clamp (other possibilities are available on request)
- Stand technology: High-resistance parallel inner spring (1143mm, 45”), Three-section articulated K arm.

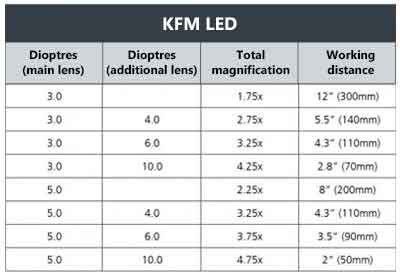

Magnification range with additional lenses:
For a larger magnification range you can add STAYS lenses (NOT included) to the main one, obtaining a maximum magnification of 4.75x, as described in the table below.
