Description

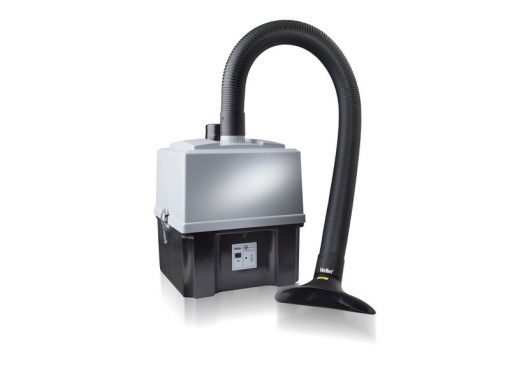

Weller ZS EL KIT 1 fume absorbing unit

ZERO SMOG EL KIT 1 – Soldering fumes extraction system, suitable for 1 or 2 workstations.
Weller product no.: FT91012699N.

Standard supply

• Zero Smog EL unit (FT91010699N)
• Flexible extraction arm, 1.5 m, Ø 60 mm (0F15)
• Funnel nozzle (ALFA)
• Fixing clamp (T0058762846)
• Filters (T0058762703, T0058762701).

Specifications

• Power: 120 VA
• Voltage: 220-240 Vac, 50-60 Hz
• 4 variable speeds for power adjusting
• Filtration monitoring with alarm
• Noise level: <53 db
• Max. turbin vacuum: 2.500 pa
• Capacity: 150 m^3/h
• Dimensions: 335 x 360 x 445h mm
• Weight: 8.6 Kg.
