Description

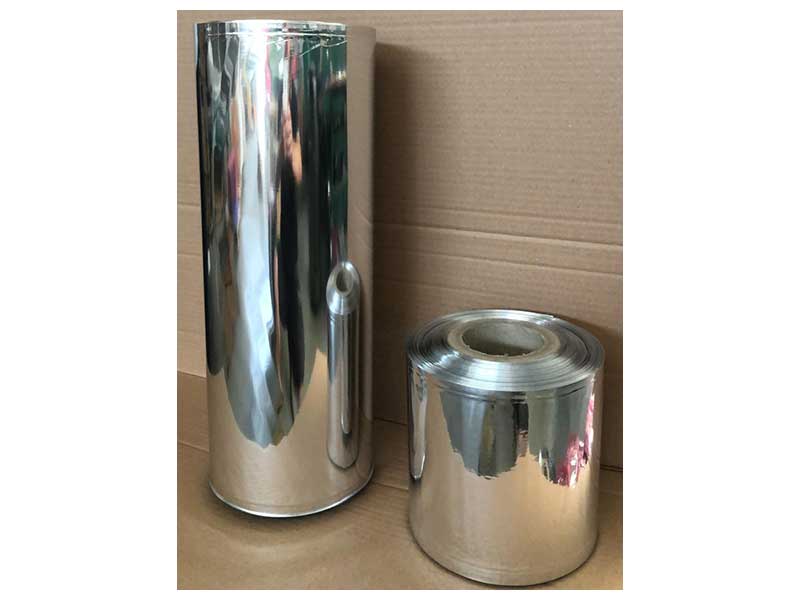

Shielding tube, 100m length
ESD safe “metal-in” tubing roll with shielding properties, semi-transparent and heat-sealable.
Thanks to the metallic intermediate layer, it creates a Faraday cage shielding effect, ensuring to the product placed inside a total protection from charges and electrostatic fields.
Perfect for shielding boards and components from external discharges.
Specifications
- Available sizes (Width): 100 mm (640400A), 150 mm (640401A), 200 mm (640402A), 250 mm (640403A), 300 mm (640404A), 400 mm (640405A), 800 mm (640514A)
- Length: 100 m
- Nominal thickness: 75 µm
- Outer layer material: Dissipative polyester film
- Shielding material: Aluminium metallisation
- Inner layer material: Dissipative polyethylene
- Surface resistance (inner): <10¹¹ Ω
- Surface resistance (outer): <10¹¹ Ω
- Compliant with CEI 61340-5-1 and RoHS standards.
ATTENTION: DELIVERY TIMES OF 90 DAYS ON AVERAGE
