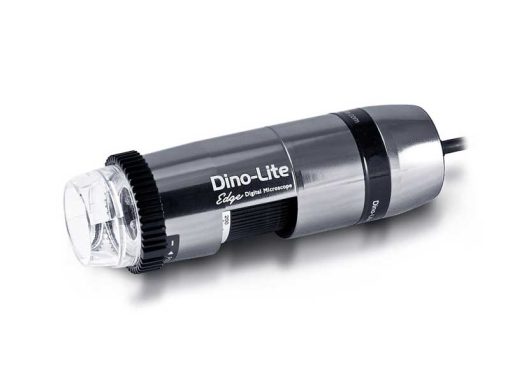

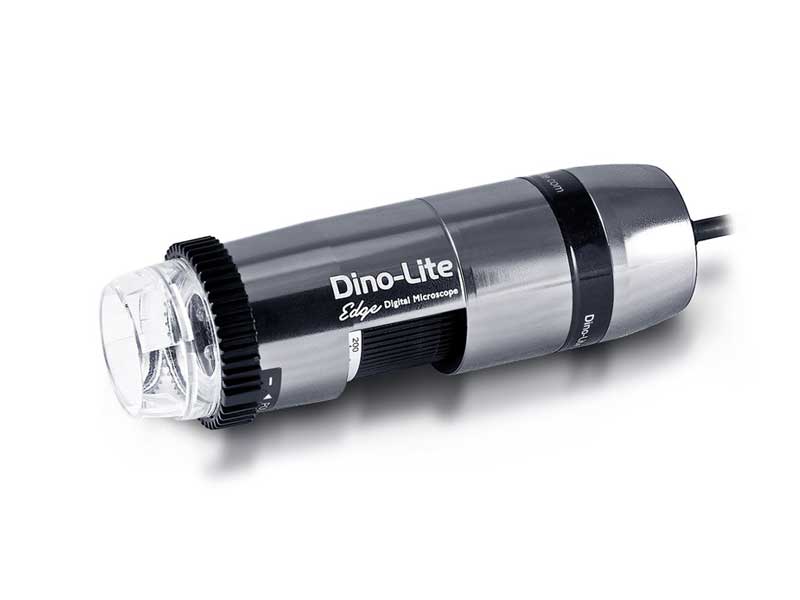

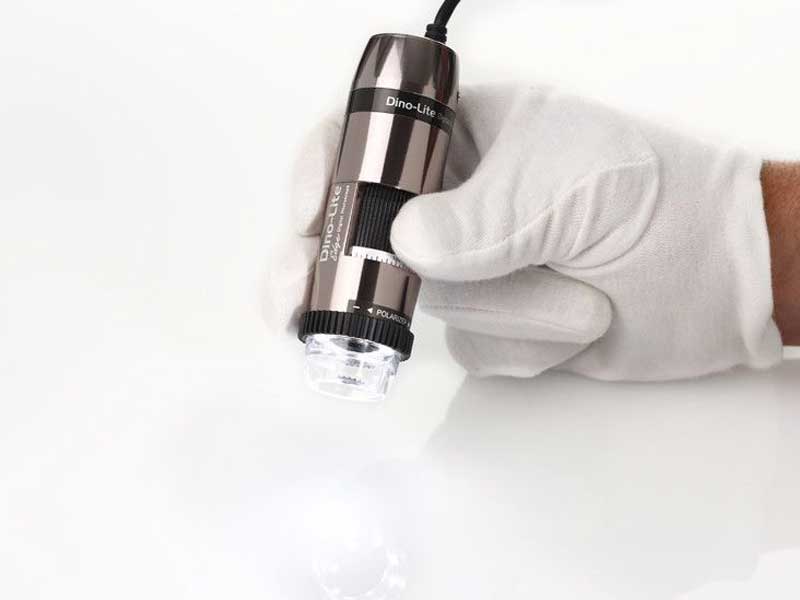

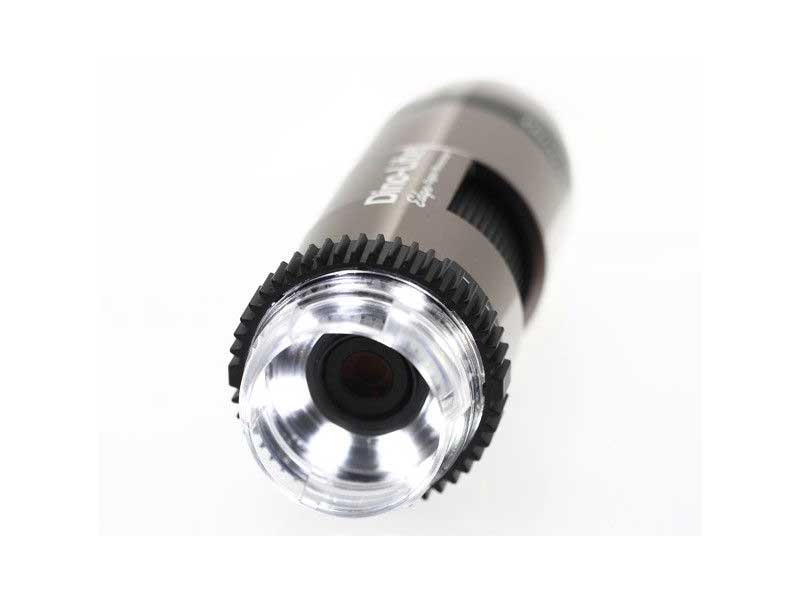

Dino-Lite Edge AM7515MZT FLC AMR Polarizer
AM7515MZT – Dino-Lite hand-held USB digital microscope with Edge 5mpx sensor (10-220x), equipped with built-in LED lighting and polarizer.
Ideal for measuring-oriented industrial applications requiring large working distance and field of view, such as repair, assembly and rework tasks. The built-in polarizer allows quality inspections of reflective materials such as metals, jewelery, glass, electronic boards. etc. The robust ESD safe aluminium housing ensures the dissipation of electrostatic discharges.
Includes the use of DinoCapture / DinoXcope software for Windows / Mac operating systems (downloadable online).
Note: This video shows a general presentation of all Dino-Lite microscopes, and not specifically the features of the AM7515MZT model
Product features
- EDGE – Thanks to the superior optics adopted, the Edge series microscopes reveal the finest details, answering the needs of the most demanding applications. Thanks to the low-loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp images and superb colours with a resolution up to 2592×1944 pixels
- Polarizer – The built-in adjustable polarizer allows to easily remove reflection or glare from the object surface for a better contrast
- Flexible LED Control (FLC) – Maximize illumination flexibility by offering independent On/Off control to the four LED quadrants, in addition to the 6-level intensity adjustment
- Automatic Magnification Reading (AMR) – You no longer have to stop and check the magnification to take a measurement: AMR detects the magnification rate automatically through the software, making measurements a more efficient, accurate and pleasant process
- Scroll Lock – This function ensures the focus knob staying at the desired focus or magnification position, without worry about unintentional movement.
Specifications
- Optics
Magnification range: 10 ~ 220 x
Lens type: Glass with anti-reflection coating
- Sensor
Sensor type: CMOS
Camera resolution: 5 Megapixel (2592 x 1944 pixel)
Frame rate: 10 fps (in 5 MP / 3 MP / 2 MP, MJPEG), 25 fps (in 1.3 MP, MJPEG), 30 fps (in VGA, MJPEG) - Supported image formats:
– DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
– DinoXcope: PNG, JPEG - Supported video formats:
– DinoCapture 2.0: WMV, FLV, SWF
– DinoXcope: MOV - Lighting: 8 white LEDs (4 quadrants with independent On/Off control switch and 6-step adjustable brightness)
- Polarizer: Yes
- Microtouch sensor: Yes
- Measuring and calibration functions: Yes
Magnification lock: Yes - Connection cable: USB 2.0 – Length: 1.8 m
- Connectivity: Wireless ready – ATTENTION: Requires a WF-10 WiFi streamer to work (NOT included)
- Housing material: Aluminium
- ESD safe: Yes
- RoHS compliant: Yes
- Dimensions: OAL 105 mm, Diameter 32 mm
- Weight: 135 g.
Optical data
| Magnification (x) |
Working distance* (with cap) |
Working distance* (without cap) |
FOV (x) |
FOV (y) |
Depth of field* |
| 10 | – | 142.6 | 39.6 | 29.7 | 26.1 |
| 20 | 52.7 | 60.1 | 19.5 | 15.6 | 2.5 |
| 30 | 26.0 | 33.5 | 13 | 10.4 | 1.8 |
| 40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5 |
| 50 | 6.4 | 13.9 | 7.8 | 6.3 | – |
| 60 | 2.2 | 9.7 | 6.5 | 5.2 | – |
| 70 | – | 7.1 | 5.6 | 4.5 | 1.0 |
| 80 | – | 5.5 | 4.9 | 3.9 | – |
| 90 | – | 4.5 | 4.3 | 3.5 | – |
| 100 | – | 4.1 | 3.9 | 3.1 | – |
| 110 | – | 4.0 | 3.6 | 2.8 | – |
| 120 | – | 4.1 | 3.3 | 2.6 | – |
| 130 | – | 4.5 | 3.0 | 2.4 | – |
| 140 | – | 5.0 | 2.8 | 2.2 | – |
| 150 | – | 5.6 | 2.6 | 2.1 | – |
| 160 | – | 6.3 | 2.4 | 2.0 | – |
| 170 | – | 7.1 | 2.3 | 1.8 | – |
| 180 | – | 8.0 | 2.2 | 1.7 | – |
| 190 | – | 8.9 | 2.1 | 1.6 | – |
| 200 | – | 9.9 | 2.0 | 1.6 | – |
| 210 | – | 10.9 | 1.9 | 1.5 | – |
| 220 | – | 11.9 | 1.8 | 1.4 | 0.1 |
*Unit: mm.
Package content: AM7515MZT microscope, Calibration target, Exchangeable caps (N3C-O open cap, N3C-C closed cap, N3C-D diffuser cap, N3C-E extension cap, N3C-L long cap, N3C-S side light cap), USB connecting cable (1.8 m length), User manual.
