Description

PROMO | DEMO product used by El.Mi for demonstrations. Warranty: 6 months

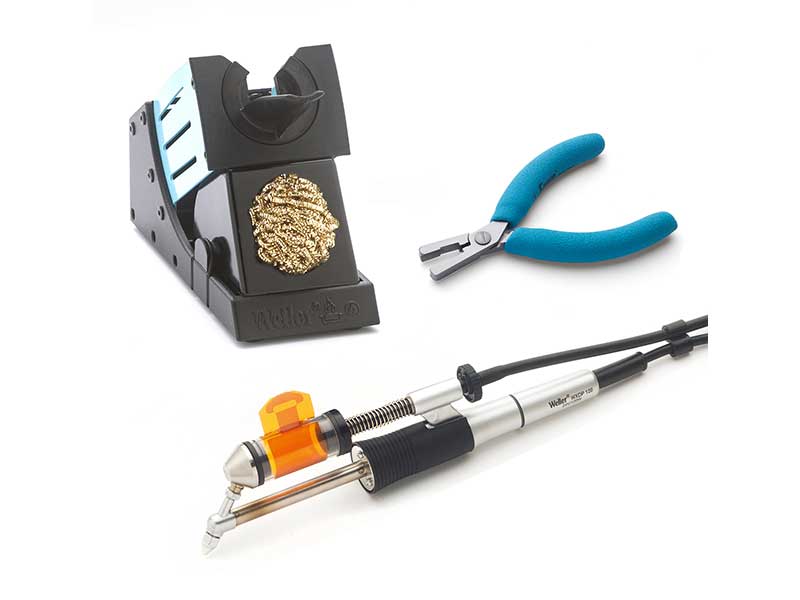

WXDP 120 desoldering iron set

WXDP 120 SET – WXDP 120 desoldering iron, supplied with XDS 5 and XDS 3 suction nozzles, WHD 70 safety rest and PDN pliers.
Weller product no.: T0051320299N.

Standard supply:

• WXDP 120 (T0051320199N) – Programmable, intelligent desoldering iron for horizontal applications, Push & Pull, 120 W, 24 V
• WDH 70 (T0051517299N) – Safety rest with dry cleaning system
• PDN (T0058765801N) – Pliers for changing XDS nozzles
• XDS 5 (T0051325499) – Desoldering nozle, intternal Ø 1.8 mm, external Ø 3.3 mm, length 10.5 mm
• XDS 3 (T0051325299) – Desoldering nozle, intternal Ø 1,0 mm, external Ø 2,3 mm, length 10,5 mm.

Specifications

• Set-Back function: Yes
• Temperature range: 100 – 450 °C
• Temperature range (depends on tool): 93 – 454 °C
• Heating time (50 – 350 °C): approx. 35 seconds
• Tip range: XDS, XDSL
• Compatible control units: WXD 2, WXR 3
• ESD safe: Yes.

ATTENTION: DEMO PRODUCT
SPECIAL OFFER VALID WHILE STOCK LASTS
