Description

Motorized counter for taped SMD components

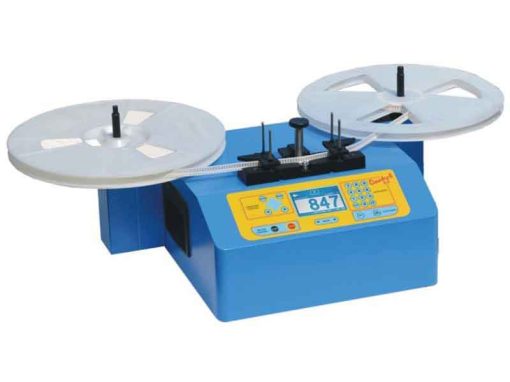

County-S EVO – Motorized machine for counting taped SMD components.
Equipped with 2 side handles for easy transport.
Counting can be made in 2 modes: Totalizer and Preset. Since the machine works by counting the holes along the tape, it is necessary to set it in advance, indicating the number of holes per component.

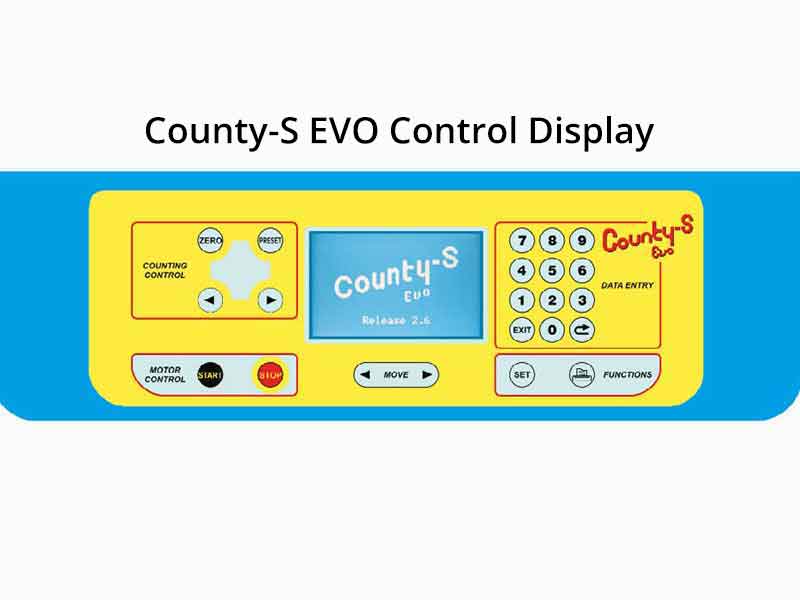

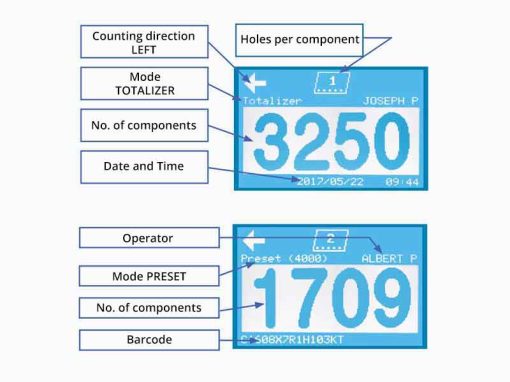

Information reported on the counting display:

• Counting direction
• Pitch (number of holes per component)
• COUNTING MODE:
  TOTALIZER – The components are counted starting from zero, the tape advancement is motorized and the counter stops automatically at the end of the tape, avoiding the loss of the total.
  PRESET – Once the required number of components is set, the counter automatically moves to the correspondent position.
• Operator’s name
• Counted components
• Date and Time – Or alternatively (if working with a barcode reader, NOT included): Scanned barcode.

Specifications

• Supply voltage: 230 V, 50-60 Hz
• Count: up to 999999 pieces – Display: 6 digits (height 22 mm)
• Number of holes per component that can be set: from 1/4, 1/3, 1/2, 1, 2, (…) to 19
  Examples: 1/4 –> 1 hole = 4 components, 1/3 –> 1 hole = 3 components, 1/2 –> 1 hole = 2 components, 1 –> 1 hole = 1 component, 2 –> 2 holes = 1 component, etc.
• Accuracy: ±1 piece
• Progress: Step by Step (1 component at a time)
• Adjustable counting speed
• Max. speed (1 hole per component): 220 pieces per second
• Profiles: up to 10 operators can be stored (max. 8 alphanumerical characters)
• Internal clock with backup (up to 1 week)
• Datalogger that stores the last 500 counting data
• Memory storage for subtotals
• Serial connection for a label printer or a computer: Yes
• Display: Blue LCD with LED backlight, 160 x 104 px – Visible area: 74 x 46 mm
• Dimensions: 525 x 340 x 250H mm
• Weight: 9.5 kg
• REQUIREMENTS:
  – Max. tape width: 56 mm
  – Distance between holes: 4 mm – NOT suitable for tapes with a pitch of 2 mm
  – Max. reel diameter (standard configuration): Ø 400 mm – Available on request (NOT included): Support for reels Ø >400 mm.

ATTENTION: REELS AND OTHER ACCESSORIES VISIBLE IN THE IMAGE GALLERY ARE NOT INCLUDED IN THE STANDARD SUPPLY

Available accessories (NOT included): Barcode reader, Model with Empty Pocket Check function to check the presence of the component (suitable only for black plastic tapes), Support for reels Ø >400 mm, Empty reel (Ø 360 mm), Direct thermal printer, Label roll (1360 pieces, 57x51mm).
