Description

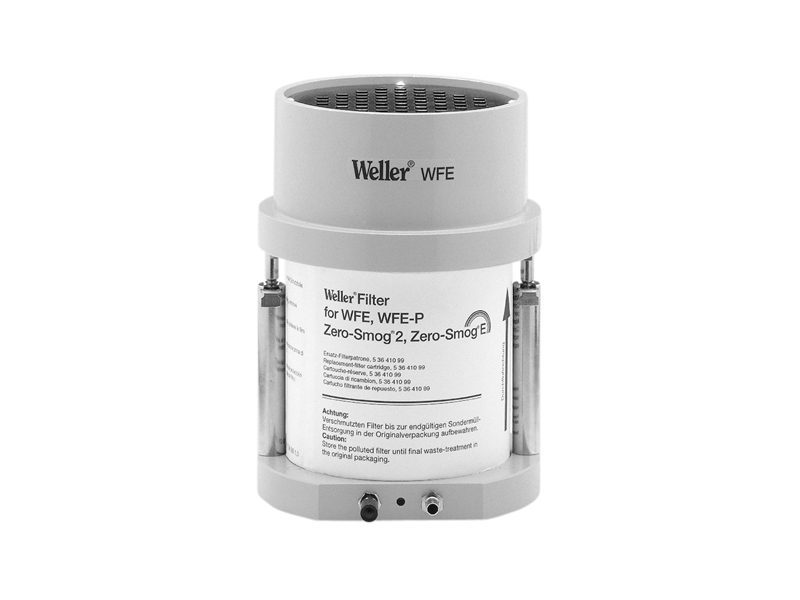

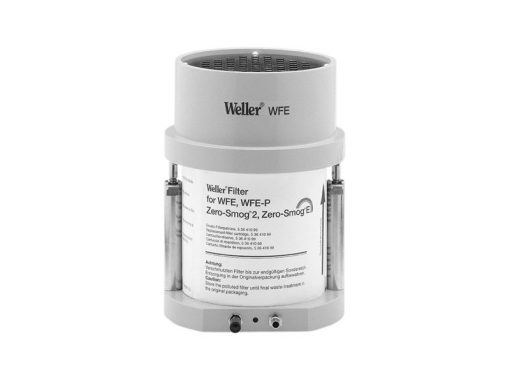

Weller WFE fume extraction unit

WFE – Portable fume extraction unit for tip suction, suitable for 1/2 workstations.
Requires external compressed air supply to operate (NOT included). The vacuum is generated by a maintenance-free compressed air converter.
The contaminated air is purified by a pre-filter and main filter system. A compressed air cleaning filter removes additional odours caused by the compressed air. This highly efficient filter system makes the WFE a genuine air recovery system.
Weller FE type (Fume Extraction) soldering irons can be connected directly to the unit, without the need of accessories.
Provided with filter set, including: compressed air filter, compact filter (H13 particle filter and wide band gas filter, 50% active carbon / 50% chemisorb) and F7-class pre-filter mat.
Weller product no.: T0053640299N.

Specifications

• Designed for industrial, long term use
• Suitable for a number of max. 2 workstations / 2 FE soldering irons
• Requires clean and oil-free compressed air
• Diameter: 140
• Power: 6 bar
• Air consumption: 30 l/min
• Capacity: 30 l/min
• Noise level (distance 1 m): < 39 dB(A)
• Max. blower vacuum: 20.000 Pa
• ESD safe: yes
• Dimensions: 140 x 140 x 200h mm.
